Speed 0-40m/min Construction Hoist

SC series Construction Hoist

Maximum Lifting Height: 250 m
Lifting Speed: 0–40 m/min
Rated Load Capacity: 1000-2000 Kg
Cargo and Passenger hoist
Application: New build construction and renovation projects

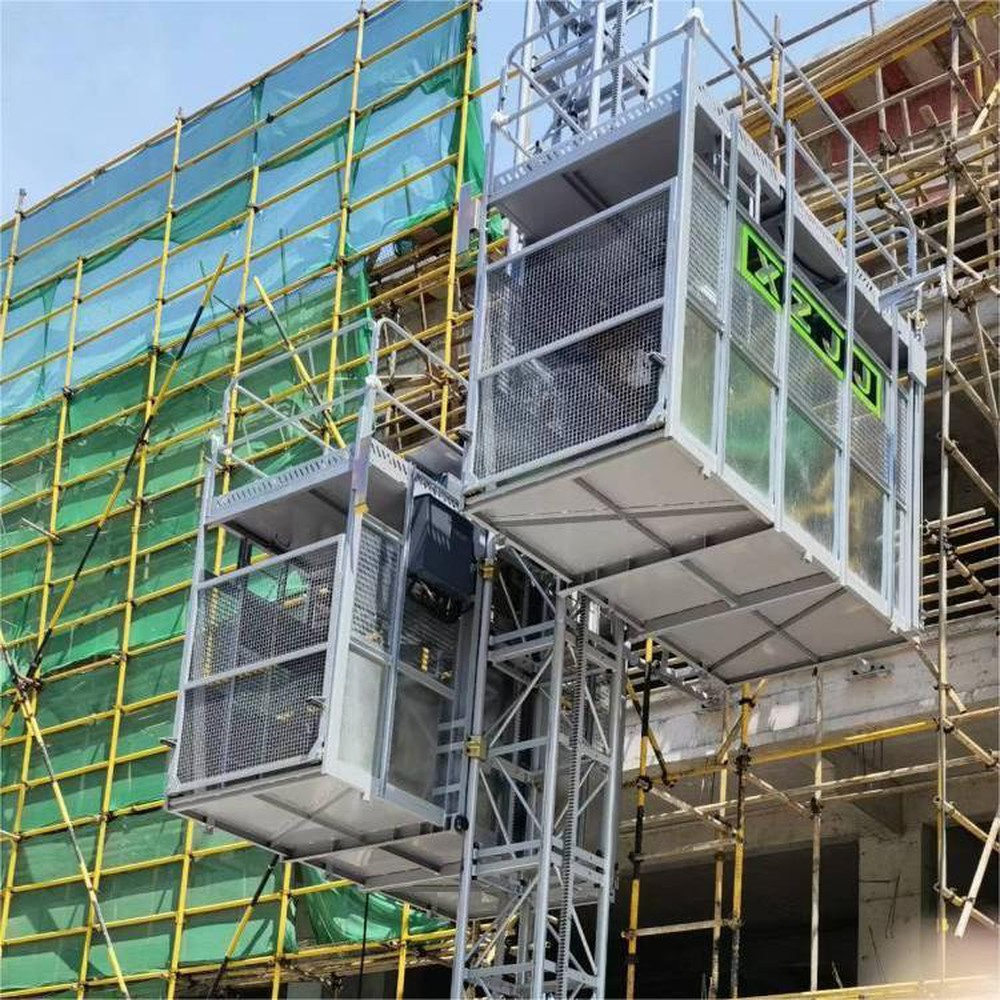

The SC Series Construction Hoist is an elevator driven by a gear-rack transmission system. It is primarily used for vertical transportation of personnel and materials during high-rise building construction. This type of elevator is very convenient to install and dismantle and can be extended as the building height increases.

Product Composition

The product mainly consists of the following components:
Base Cage (Outer Cage)
Hoist Cage(s)
Guide Rail Frame (Standard Section)
Tie-in Brackets
Transmission Mechanism
Safety Anti-fall Device
Safety Control System
Cable System
Counterweight System
Hoisting Boom

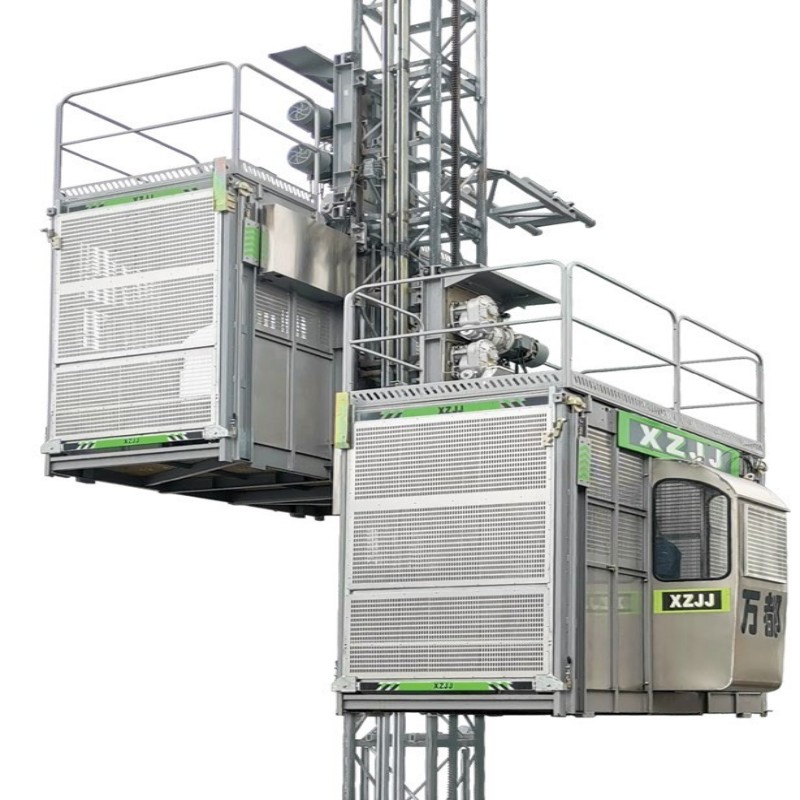

It is available in both single-cage and double-cage configurations. A single-cage hoist can be easily converted into a double-cage model by adding another cage and related components.

Speed 0-40m/min Construction Hoist parameters

Model	Payload(kg)	Install load(kg）	Max height (m)	Speed(m/min)	Motor Power (kW)	Frequency converter power(kW)
SC100	1000	1000	250	0-40	2×11	30
SC150	1500	1500	250	0-40	2×11	30
SC200	2000	2000	250	0-40	2×13	37
SC100/100	2×1000	2×1000	250	0-40	2×2×11	2×30
SC150/150	2×1500	2×1500	250	0-40	2×2×11	2×30
SC200/200	2×2000	2×2000	250	0-40	2×3×11	2×37
SC200/200A	2×2000	2×2000	250	0-40	2×2×13	2×37
SC320/320	2×3200	2×3200	250	0-40	2×3×18.5	2×75
Cage Dimensions: Recommended specifications (LxWxH) include: 3x1.3x2.2m,3x1.5x2.2m,3.2x1.5x2.5m,3.6x1.5x2.5m,3.8 x1.5 x2.5m,4x1.5x2.5m, 4.2x1.5x2.5m. Customized cage sizes can be manufactured according to customer requirements. Cage colors are subject to the product sample book.

Special Power Requirements: Please declare any special requirements regarding the power supply at the time of ordering.
Customization: The size of the hoist cage and the length of the tie-in brackets can be customized according to the user's requirements.
Height Extension: The installation height can be increased based on the user's requirements.
