SCQ Series Curve Construction Hoist

SCQ Curve Construction Hoist

Lifting Speed: 0–40 m/min
Rated Load Capacity: 1.2-1.6t
Voltage: 380–500 V / 50-60 Hz
Application: Bridges,towers,
Industrial Structures,water towers, chemical plants.
Special Buildings: Suitable for any structure requiring non-linear vertical transport

Inquire Now

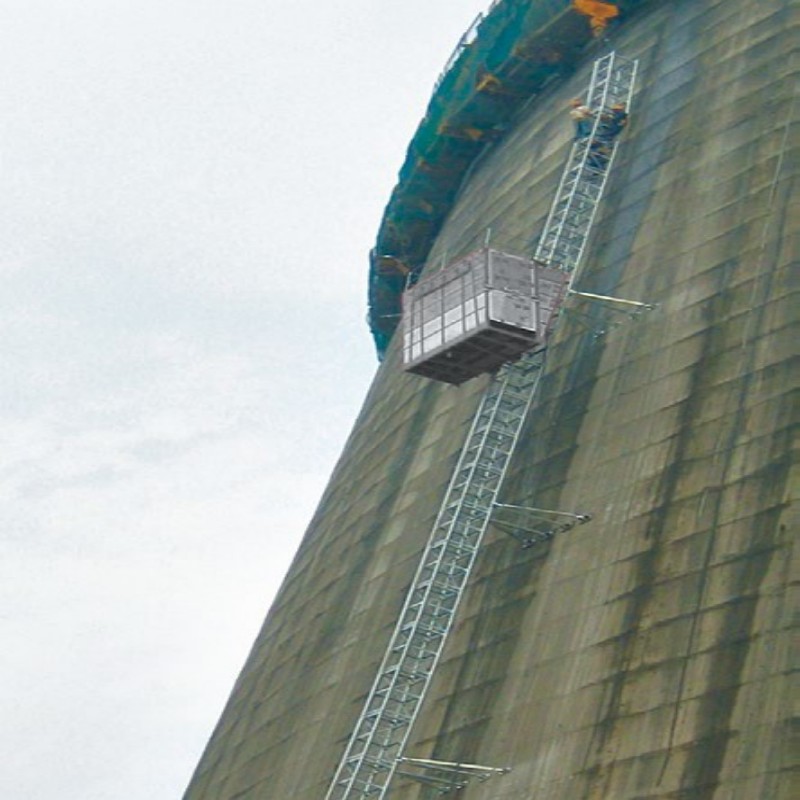

The SCQ Series Curve Construction Hoist is a specialized vertical transportation solution engineered for complex architectural structures with curved or irregular guide rails. Unlike standard vertical hoists, this model is designed to operate seamlessly along pre-set curved tracks, making it the ideal choice for unique construction projects such as bridges, chimneys, and power plants.

Key Features
Adaptive Curve Operation: Specifically designed to run on curved guide rails, adapting to the structural characteristics of special buildings.

Variable Frequency Drive: Equipped with an optional frequency conversion speed control system for smooth starts and stops, ensuring precise automatic leveling even on curved paths.

Customizable Cabin: Offers flexible cage dimensions to meet specific site requirements and passenger comfort.

Application Scenarios
Bridges & Dams: Perfect for cable-stayed towers and bridge piers.

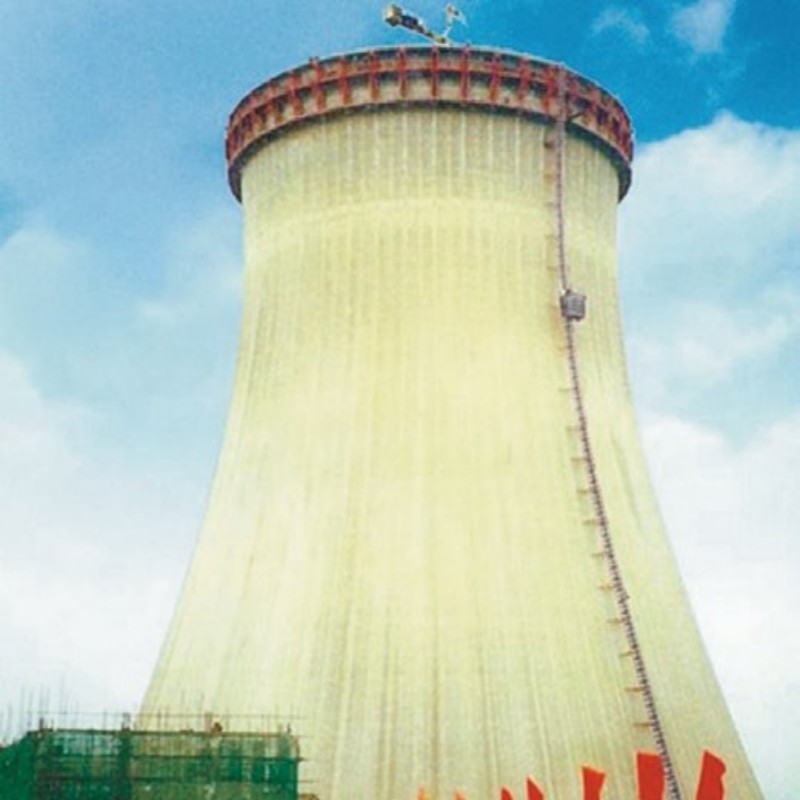

Industrial Structures: Ideal for chimneys, water towers, and chemical plants.
Special Buildings: Suitable for any structure requiring non-linear vertical transport.

Model	Rated capacity(kg)	Lifting speed(m/ min)	Motorpower/ per cage(kW)
SCQ120	1200	0-40	2X11
SCQ160	1600	0-40	2X11
Recommended ca ge dimension (Lx W×H)(m): 2.4×1.3×2.5,3×1.3×2.5, 3.2×1.5×2.5 cage dimension is according torequirement of customer; Can select frequency conversion system.
