SCI200 Intelligent Automatic Construction Hoist
| SCI200 Intelligent Automatic Construction HoistSmart .Safe . Efficient Vertical Transport for High-Rise Construction • Twin cage design, 2000 kg × 2 rated load• Intelligent automatic control system • Advanced anti-falling & safety protection • Variable frequency drive for smooth operation • Designed for high-rise and super high-rise buildings • Trusted solution for contractors and rental companies Inquire Now |
Designed for Modern High-Rise Construction Projects
The SCI200 Intelligent Automatic Construction Hoist is designed to meet the demanding requirements of modern high-rise and super high-rise construction.
With a twin cage structure, intelligent control system, and comprehensive safety protection, SCI200 ensures smooth, stable, and efficient vertical transportation of workers and materials throughout the construction process.
It is widely used by construction contractors, equipment rental companies, and engineering firms seeking reliable performance, reduced downtime, and improved on-site safety.

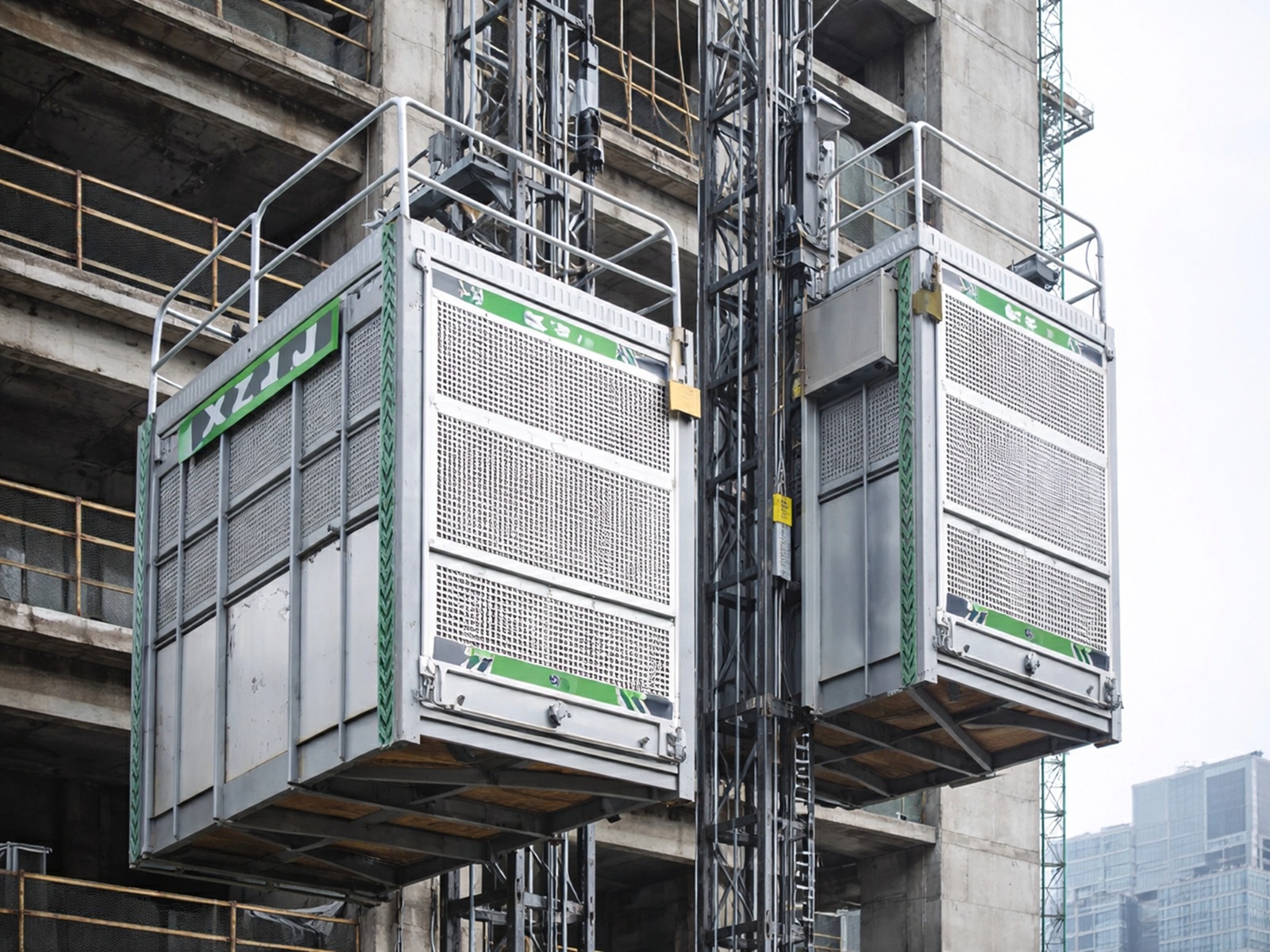

Intelligent twin cage construction hoist designed for modern high-rise projects.
Key Advantages of SCI200
High Efficiency Operation
- Variable frequency drive ensures smooth start and stop
- Reduced mechanical impact and component wear
- Stable lifting even under full load
Intelligent Automatic Control
- Automatic fault diagnosis and alarm system
- On-site voice and text display for error messages
- Optional remote monitoring and data transmission
Advanced Safety Protection
- Certified anti-falling safety device
- Door and floor interlocking system
- Overload protection and limit switches
- Emergency stop and safety braking system
Low Maintenance Design
- Automatic lubrication system
- Reduced manual maintenance work
- Optimized structure for long-term operation
Structure & Technical Features
- Rack and pinion drive system for stable vertical movement
- High-strength steel mast and cage structure

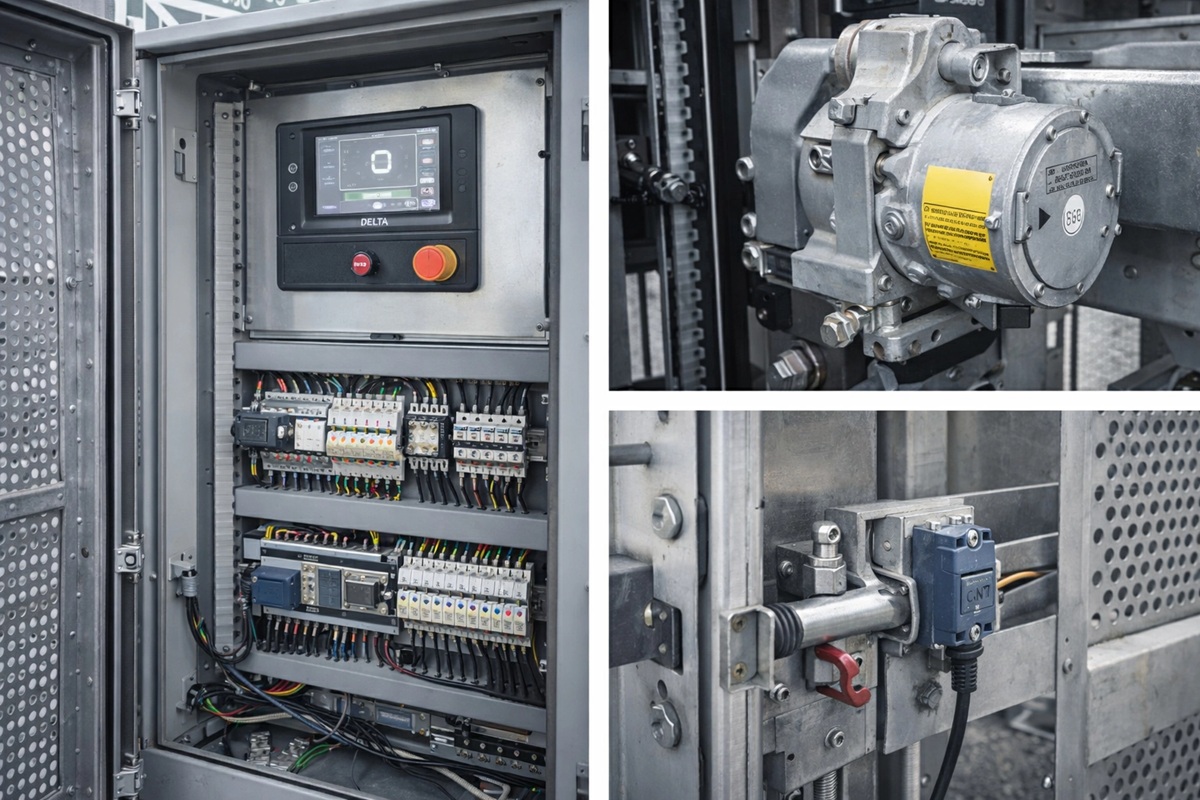

- Integrated electrical control cabinet for easy access
- Reinforced cage panels for durability and safety
- Modular design for fast installation and dismantling
Built to withstand harsh construction environments and long working hours.
Smart Monitoring & IoT Ready
- Optional GPS / GPRS remote monitoring
- Real-time operating status tracking
- Fault data upload and analysis
- Supports intelligent construction site management systems
This allows project managers to monitor equipment performance and reduce unexpected downtime.
Main Technical Parameters
SCI200 / SC(I) 200/200
| Item | Unit | Value |
|---|---|---|
| Rated Load | kg | 2000 × 2 |
| Rated Lifting Speed | m/min | 0–40 |
| Max Lifting Height | m | 250 |
| Motor Power | kW | 13 × 2 |
| Rated Current | A | 54 × 2 |
| Power Capacity | kVA | 100 |
| Power Supply | 380V / 50Hz |
SCI200 / SC(I) 200/200 (Z)
| Item | Unit | Value |
|---|---|---|
| Rated Load | kg | 2000 × 2 |
| Rated Lifting Speed | m/min | 0–63 |
| Max Lifting Height | m | 450 |
| Motor Power | kW | 18.5 × 2 |
| Rated Current | A | 113 × 2 |
| Power Capacity | kVA | 200 |
| Power Supply | 380V / 50Hz |

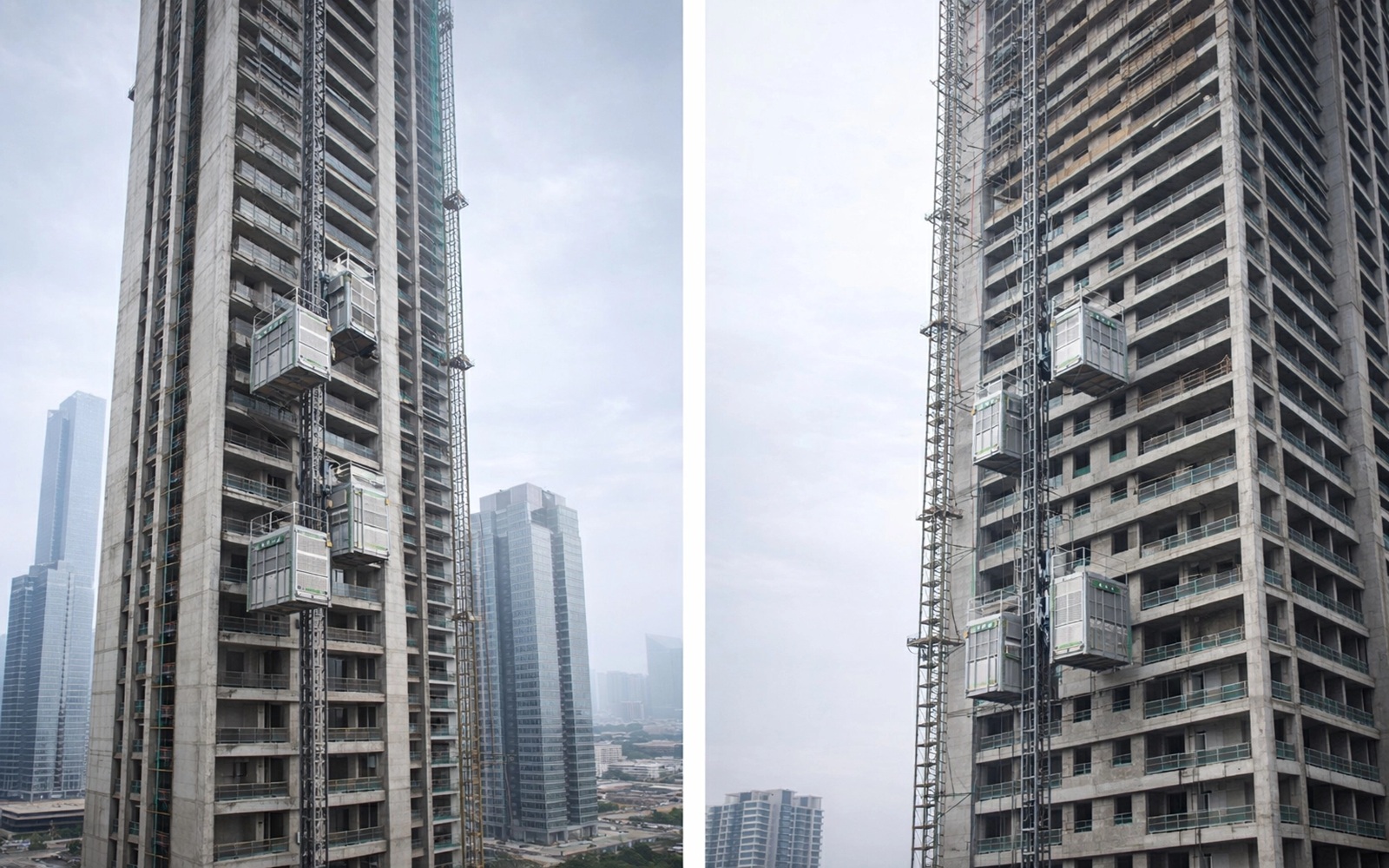

Application Sites
- High-rise residential buildings
- Commercial towers and office buildings
- Industrial construction projects
- Infrastructure and large-scale developments
