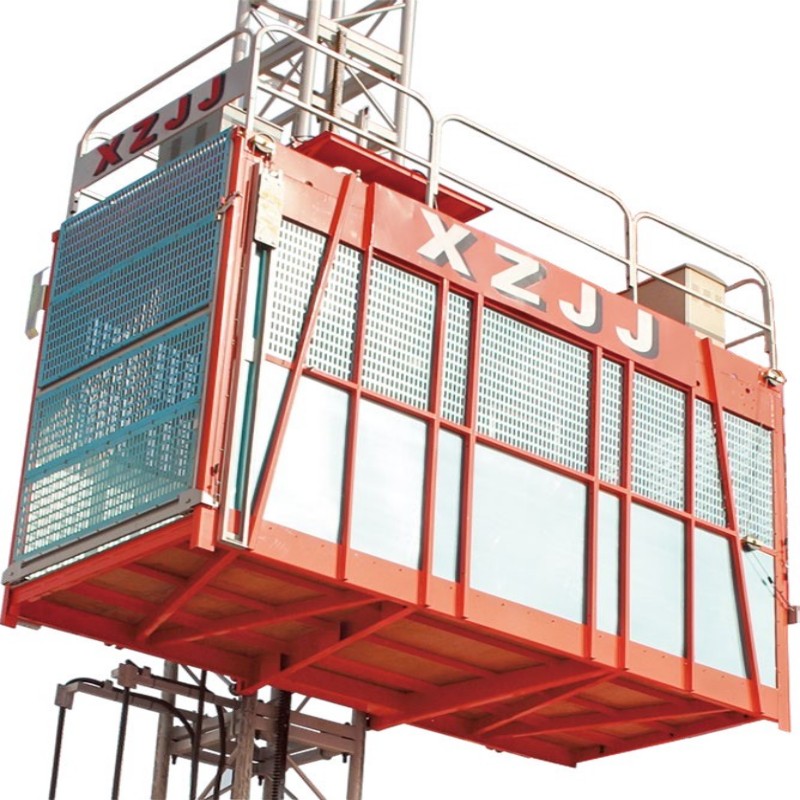

SC320/320(BP) Low Speed

Variable Frequency Building Hoist

  • Maximum Lifting Height: 450 m
  • Lifting Speed: 0–40 m/min
  • Rated Load Capacity: 3200x2 Kg
  • Voltage: 380–500 V / 50-60 Hz
  • Application: high-rise building construction projects

Inquire Now

SC320/320(BP) Low Speed Variable Frequency Hoist

Structure and Technical Features
  • Fully automatic frequency conversion control, remote monitoring, remote fault diagnosis and alarm, and remote information transmission.
  • Touchscreen operation.
  • Automatic leveling, automatic floor selection, automatic lubrication, automatic diagnostic alarm, and automatic operation of heavy load at low speed and light load at high speed.
  • External cage with double doors; external cage maintenance door electromechanical interlock.
  • Special electrostatic powder coating technology guarantees no repainting required for 8 years.
No.ItemsUnitParameterRemarks
1Rated loadkg3200×2
2Rated lifting speedm/min0-40
3Maximum lifting heightm450
4Motor powerkW18.5×3×2
5Rated currentA113×2
6Inverter powerkW75×2

Special Power Requirements: Please declare any special requirements regarding the power supply at the time of ordering.
Customization: The size of the hoist cage and the length of the tie-in brackets can be customized according to the user's requirements.
Height Extension: The installation height can be increased based on the user's requirements.
