 SC270/270 Series Construction Hoist
  • Maximum Lifting Height: 600 m
  • Lifting Speed: 0–96 m/min
  • Rated Load Capacity: 2x2700 Kg
  • Voltage: 380–500 V / 50-60 Hz
  • Application:High construction sites
  • Single and Double cage(car)
  • Heavy duty construction

Inquire Now

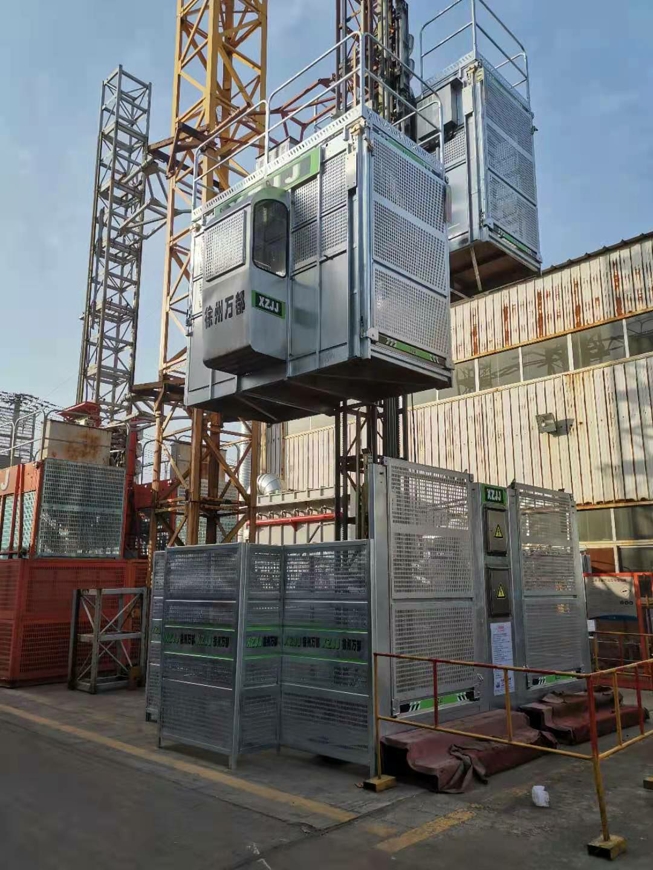

The SC270  type construction hoist is an elevator driven by gears and racks. It is mainly used for the vertical transportation of people and goods during the construction of high-rise buildings. This type of elevator can be installed and dismantled very easily, and its height can be increased as the building grows.

  SC270/270SC270/270BPSC270/270ZSC270/270G
Rated Loadkg2*27002*27002*27002*2700
Max Lifting Heightm250450450600
Rated Lifting Speed 33m/min0-40m/min0-63m/min0-96m/min
Jib Loadkg350350350350
Motor Powerkw2*3*152*3*18.52*3*18.52*2*22
Rated CurrentA2*3*23.22*3*23.22*3*37.82*3*39
Inverter Powerkw/3775
Safety Device/SAJ4.0-1.2SAJ6.0-1.2SAJ6.0-1.4SAJ6.0-2.0
Power Supply 380V/50HZ380V/50HZ380V/50HZ380V/50HZ
Power Capacity 120KvA120KvA120KvA120KvA
 Section Sizemm800*800*1508800*800*1508800*800*1508800*800*1508
Cage Size (L*W*H)mm3200*1500*25003200*1500*25003200*1500*25003200*1500*2500



Special Power Requirements: Please declare any special requirements regarding the power supply at the time of ordering.
Customization: The size of the hoist cage and the length of the tie-in brackets can be customized according to the user's requirements.
Height Extension: The installation height can be increased based on the user's requirements.
