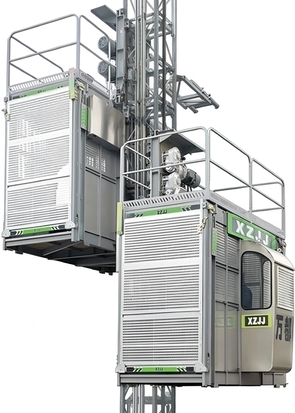

SC200/200Z Construction Hoist
 | Model: SC200/200Z Construction Hoist
|
The SC200/200Z is a new-generation construction hoist designed by our company, incorporating advanced domestic and international technologies. It features a German-made frequency inverter and is equipped with an automatic leveling device.
Compared to the SC200/200BP model, this hoist offers distinct advantages including smooth starting, braking, and operation, high energy efficiency, minimal mechanical wear, and low noise levels. With a speed adjustment range of 0–68 meters per minute, it significantly improves construction efficiency and is particularly suitable for super high-rise building construction projects.
SC200/200Z Construction Elevator
Rated load: 2000*2 kg
Lifting speed: 0-63 m/ min
Maximum lifting height : 450 m
Motor power: 18.5*3*2 kw
Rated current: 113*2 A
Inverter power : 75*2 kw
Security Anti-dropping : SAJ5.0-1.2
Power supply: 380V/50Hz
Power capacity : 120 KVA
Mast section size : 650*650*1508 mm
Cage space(L*W*H): "3000*1300*2200/3000*1500*2200/3200*1500*2500mm"
Special Power Requirements: Please declare any special requirements regarding the power supply at the time of ordering.
Customization: The size of the hoist cage and the length of the tie-in brackets can be customized according to the user's requirements.
Height Extension: The installation height can be increased based on the user's requirements.
N/A: "/" indicates that this item is not applicable.
