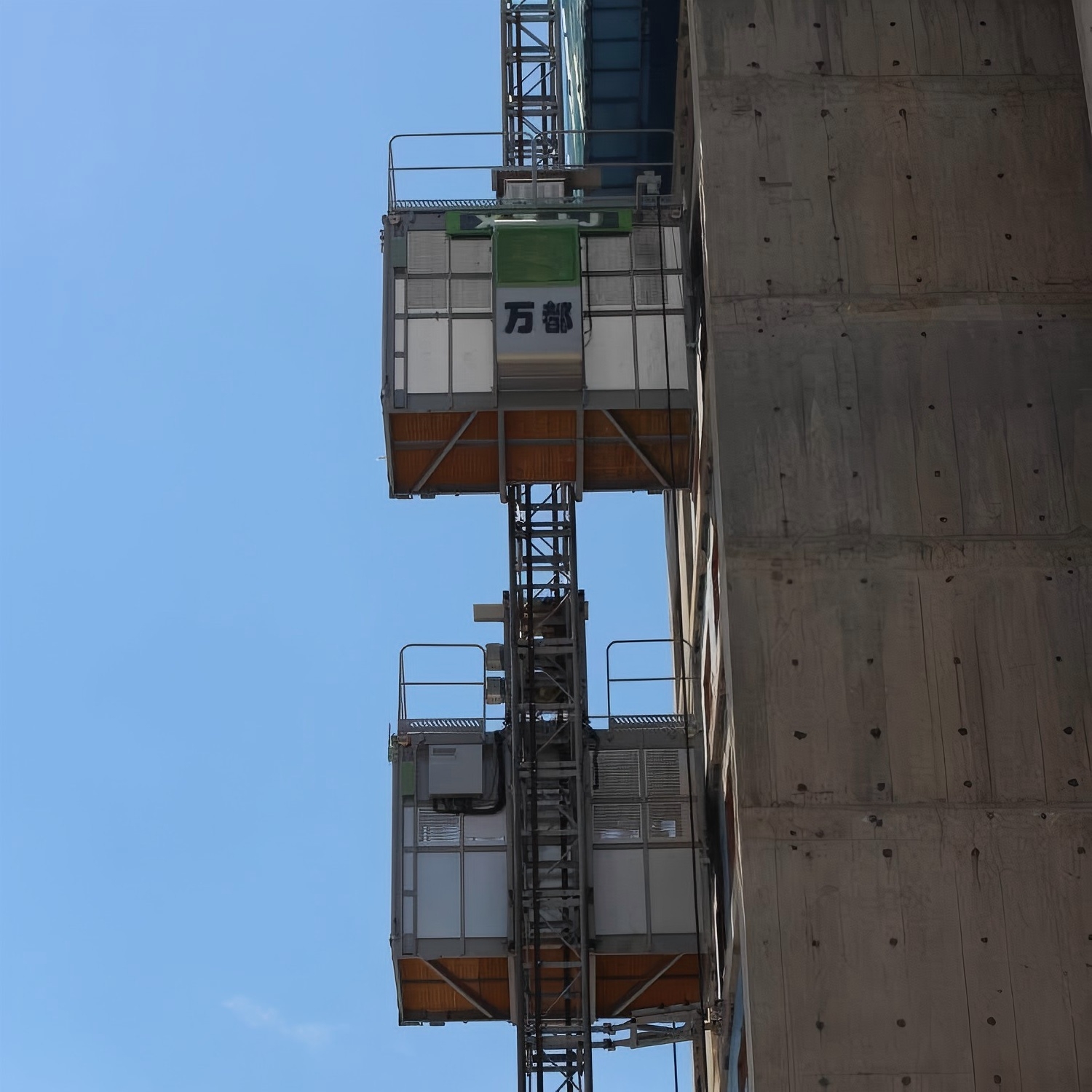

SC200/200 Construction Hoist
| SC200/200 Construction Hoist
|
The SC200/200 construction hoist is a new-generation product designed by our company, incorporating advanced domestic technologies. Compared to traditional hoists, this model features a more rational and compact structural stress design, a robust and durable cage structure, an attractive appearance, and exquisite components. It is also convenient for disassembly, maintenance, and safe, comfortable operation.
Transmission Mechanism: Available in various configurations, including three-motor, two-motor, and new energy-saving types.
Design: The transmission plate is mounted on the top of the cage, effectively preventing accidents caused by over-height operation and ensuring a comfortable ride.
Control Panel: The integrated control panel features a floor call system, overload controller, power voltage display, and other devices, making operation convenient and comfortable.
Safety: Multiple patented technologies are applied, such as anti-fall guide wheels, ensuring the safe operation of the equipment.
SC200/200 Construction Elevator
Rated load: 2000*2 kg
Lifting speed: 0-45 m/ min
Maximum lifting height : 250 m
Motor power: 11*2*2 kw
Rated current: 46*2 A
Inverter power : 75*2 kw
Security Anti-dropping : SAJ3.0-1.2
Power supply: 380V/50Hz
Power capacity : 100 KVA
Mast section size : 650*650*1508 mm
Cage space(L*W*H): "3000*1300*2200/3000*1500*2200/3200*1500*2500mm"
Special Power Requirements: Please declare any special requirements regarding the power supply at the time of ordering.
Customization: The size of the hoist cage and the length of the tie-in brackets can be customized according to the user's requirements.
Height Extension: The installation height can be increased based on the user's requirements.
