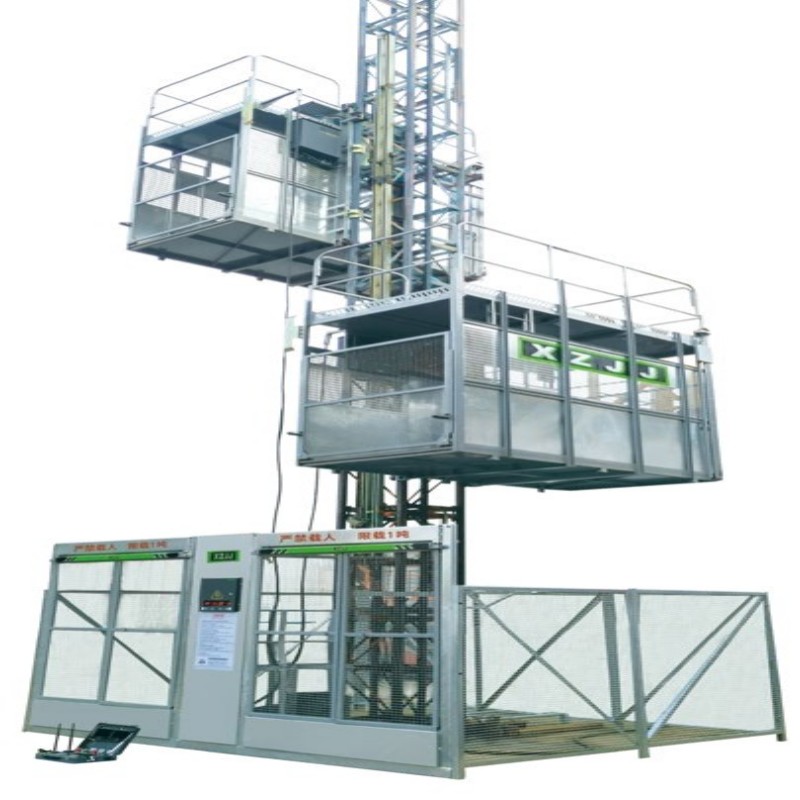

New Generation Construction Hoist SC100/100(M) for Cargos
| SC100/100(M)/SC100/100(MI)Cargo Construction Hoist
|
XZJJ New Generation Builders Hoist for Goods
The XZJJ New Generation Builders Hoist for Goods is designed specifically for efficient vertical transportation of materials on construction sites. Featuring a robust structure and advanced control technology, this hoist offers two innovative operation modes: Suitcase Wireless Remote Control and Fully Automatic Driverless operation.
Key Features & Technology
Innovative Operation Modes
Suitcase Wireless Remote Control: Operators carry a suitcase-style remote control, allowing them to command the hoist wirelessly and deliver goods directly to the designated floor as needed.
Fully Automatic Driverless System: Equipped with frequency conversion control for smooth and energy-efficient operation. The system supports automatic leveling (one-time positioning), voice alarms, and voice broadcasting.
Intelligent Safety & Design
Smart Response: Supports multi-person calling with an intelligent response system that stops at the nearest floor based on the "nearest principle."
Enhanced Safety: Features integrated safety devices including a human shape recognition system and an obstacle protection system for the cage running channel.
Optimized Structure: The cage has a width of 1.5m with an embedded electrical box, maximizing internal space. It utilizes a patented electric jib that is lightweight and easy to assemble/disassemble.
Corrosion Resistance & Compatibility
Anti-Corrosion: The enclosure, base frame, and cage doors are hot-dip galvanized, while the cage structure uses electrostatic spraying and punched galvanized wall panels, ensuring strong corrosion resistance.
Resource Sharing: The standard sections and tie-in frames are universal with SC-type passenger hoists, allowing resource sharing and reducing operating costs.
| Model | SC100/100(M)/SC100/100(MI) | SC120/120(M)/SC120/120(MI) |
| Operation Constrol Method | Briefcase Remote Control / Fully Automatic Driverless(optional) | |
| Rated load | 1000×2kg | 1200×2kg |
| Boom rated load | 250kg | 250kg |
| Lifting speed | 0~30m/min | 0~30m/min |
| Maximum lifting height | 100m | 100m |
| Motor power | 13×2kw | 13×2kw |
| Rated current | 27×2A | 27×2A |
| Inverter power | 18.5×2 kw | 18.5×2 kw |
| Securityanti-dropping model | SAJ3.0--1.2 | SAJ3.0--1.2 |
| Cage size (LxWxH) | 3.0x1.5x2.1m | 3.0x1.5x2.1m |
| Power supply | 380V/50HZ | 380V/50HZ |
| Guard Cage Weight | 940kg | 940kg |
| Car weight | 1030kg | 1030kg |
| Mast Size | 650x650x1508mm | 650x650x1508mm |
| Transmission Arrangement | Built-in ( Internal) | External (Outboard) |
| Hoist Cage Type | Semi-Enclosed | fully-enclosed |
Special Power Requirements: Please declare any special requirements regarding the power supply at the time of ordering.
Customization: The size of the hoist cage and the length of the tie-in brackets can be customized according to the user's requirements.
Height Extension: The installation height can be increased based on the user's requirements.
