Curve Guide Rail Construction Hoist
| Curve Guide Rail Construction Hoist |
Curve Guide Rail Construction Hoist
Designed for Curved & Hyperbolic Structures

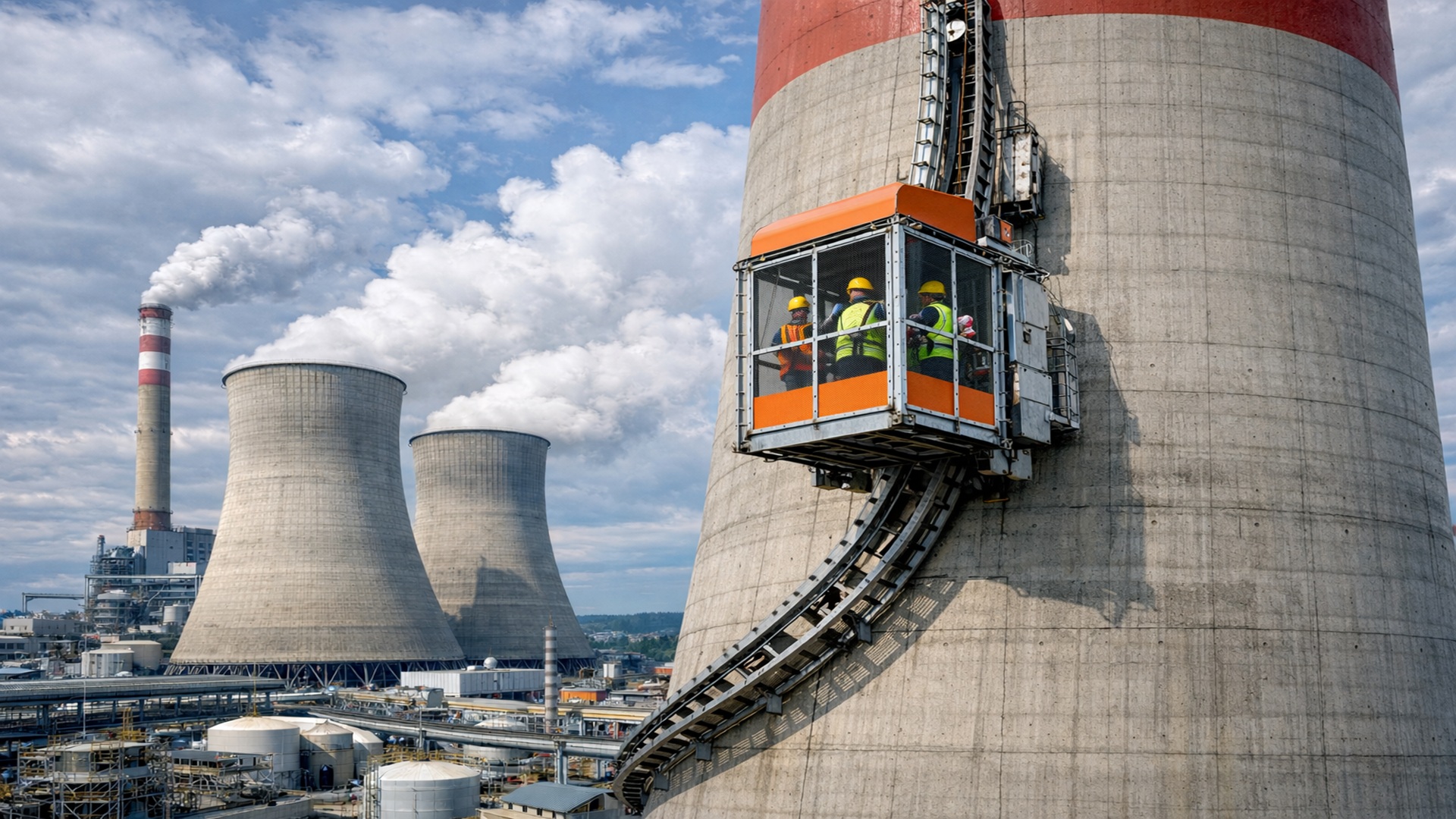

Curve Guide Rail Construction Hoist is a custom-engineered vertical transportation system designed for structures with curved, inclined, or hyperbolic surfaces, where standard vertical construction hoists cannot be installed.
By adopting a custom-fabricated curved guide rail, the hoist cage moves safely and smoothly along the structure profile, providing reliable access for workers and materials throughout the entire construction process.
What Is a Curve Guide Rail Construction Hoist
Curve Guide Rail Construction Hoist is a special-purpose construction elevator developed for projects where the building geometry does not allow vertical mast installation.
Unlike conventional construction hoists that rely on straight vertical guide masts, this system uses curved guide rails, which are precisely manufactured to match the curvature and elevation changes of the structure.
The hoist cage travels along the curved rail system, ensuring stable lifting performance, high safety, and continuous operation during construction.
Why Curve Guide Rail Hoist Is Required
Many industrial and infrastructure projects involve structures that are not vertical by design, such as chimneys and cooling towers.
Common Challenges with Traditional Solutions
- No vertical surface for mast installation
- Constant radius change along the structure height
- High safety risk using ladders or suspended platforms
- Low efficiency for personnel and material transport
How Curve Guide Rail Hoist Solves These Problems
- Custom curved rail follows the structure profile
- Stable rack & pinion drive ensures smooth movement
- Fixed rail system minimizes lateral displacement
- Suitable for full-height operation from ground to top
Application Areas
Curve Guide Rail Construction Hoist is widely used in:
- Chimney construction projects

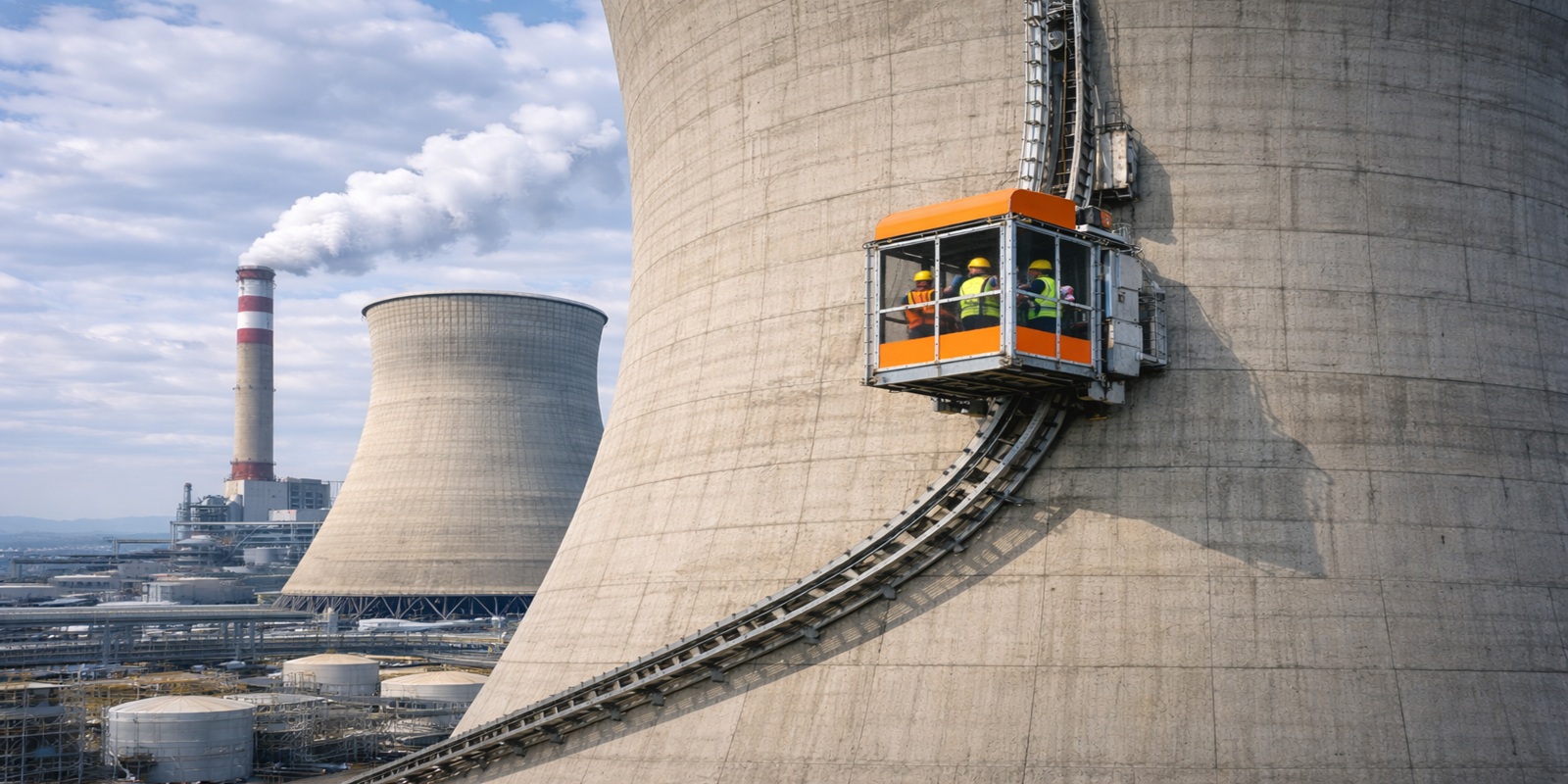

- Cooling tower construction
- Power plant structures
- Chemical plant facilities
- Inside curved shafts or wells
- Other special-shaped concrete or steel structures
Key Technical Features

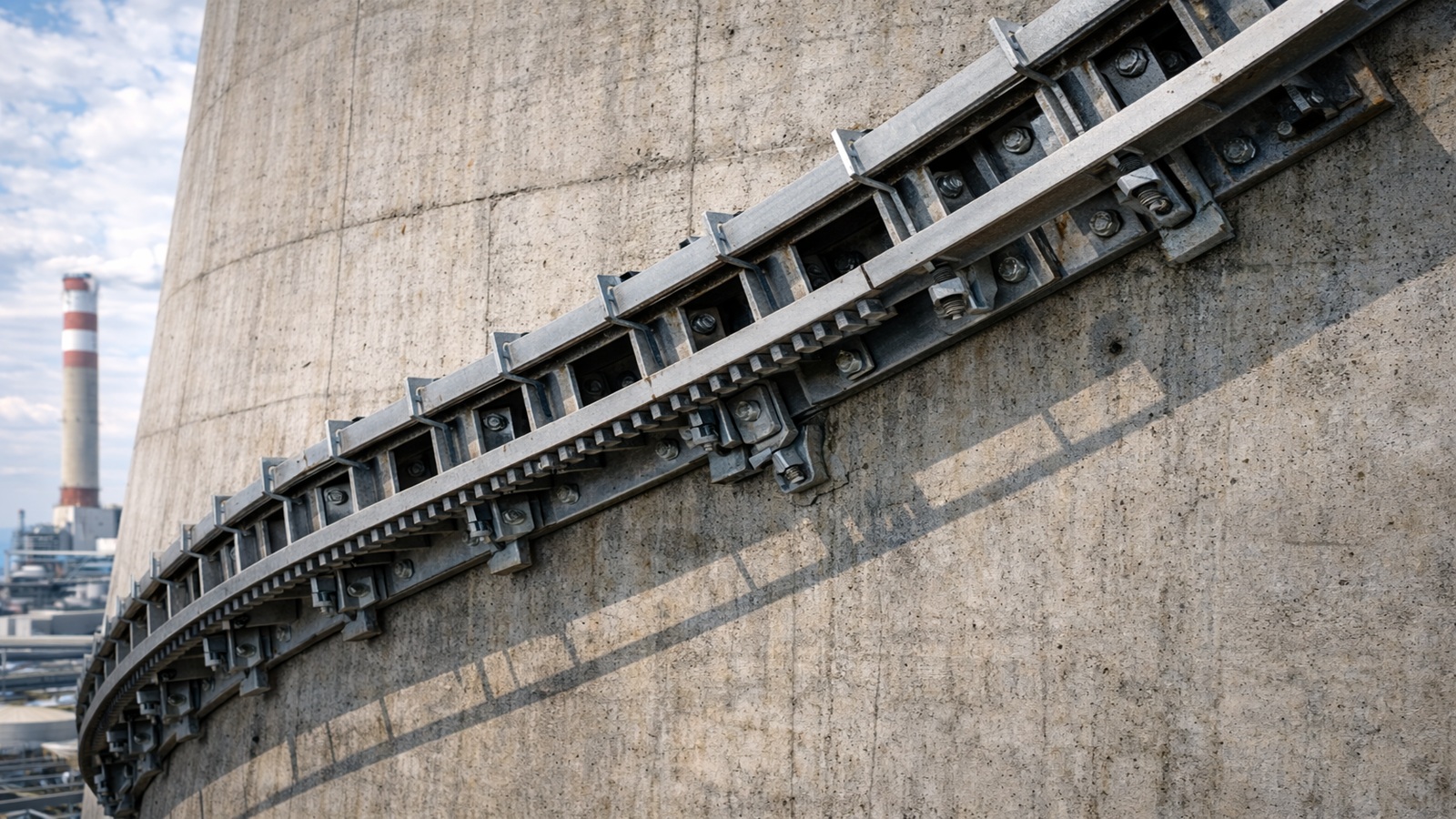

- Customized curved guide rail system
Manufactured according to project drawings and structure geometry - Stable rack & pinion drive

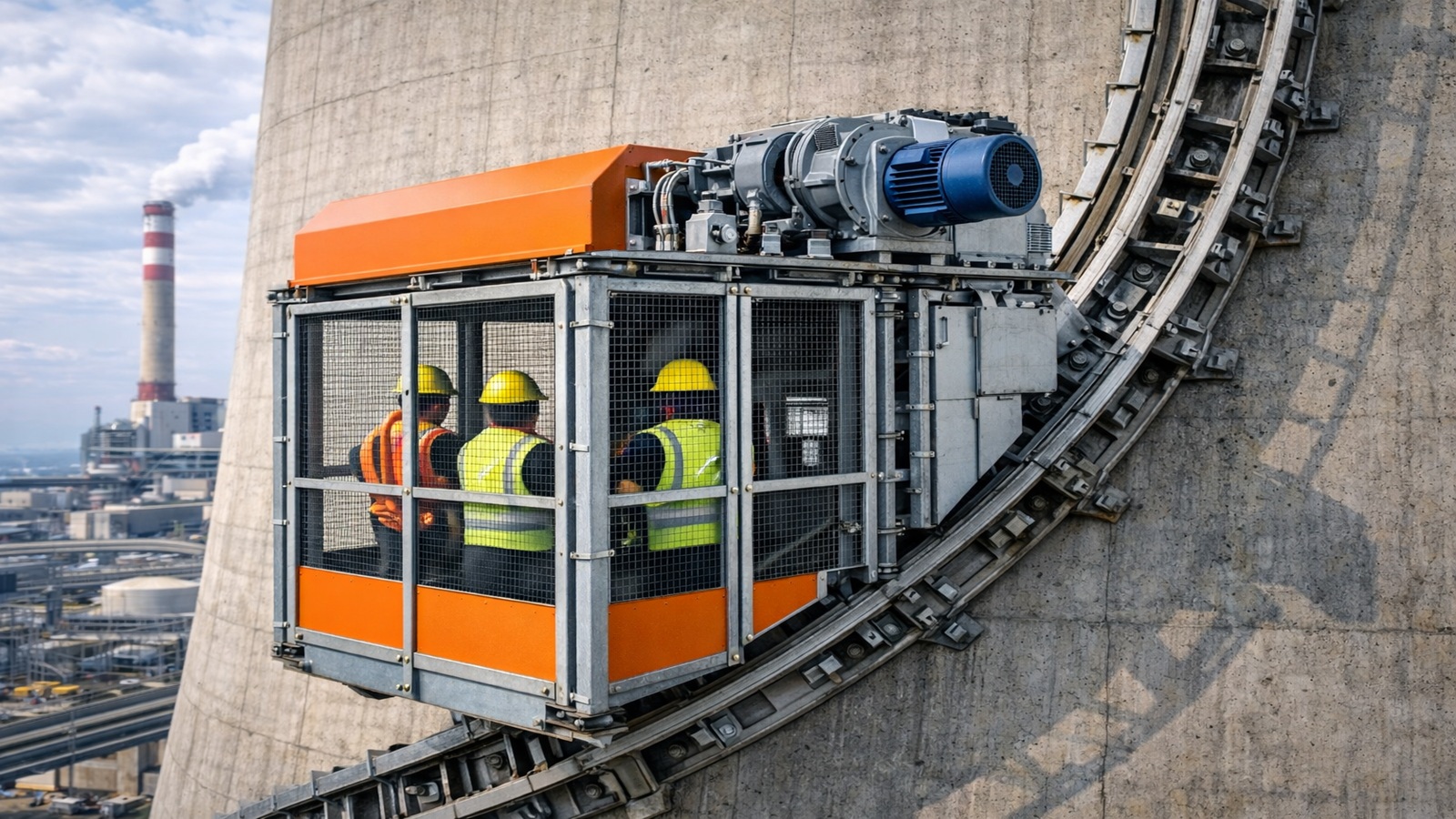

Ensures smooth lifting along curved surfaces - Heavy-duty hoist cage
Designed for industrial construction environments - Flexible installation method
Rail sections are installed progressively as the structure grows - Frequency conversion control (optional)
Smooth start and stop, reduced mechanical stress
Technical Specifications
Standard Models
| Model | Rated Capacity | Lifting Speed | Motor Power |
|---|---|---|---|
| SCQ120 | 1200 kg | 0–40 m/min | 2 × 11 kW |
| SCQ160 | 1600 kg | 0–40 m/min | 2 × 11 kW |
Recommended Cage Dimensions (L × W × H)
- 2.4 × 1.3 × 2.5 m
- 3.0 × 1.3 × 2.5 m
- 3.2 × 1.5 × 2.5 m
- Cage size can be customized according to customer requirements
- Frequency conversion system available as option
Safety & Reliability

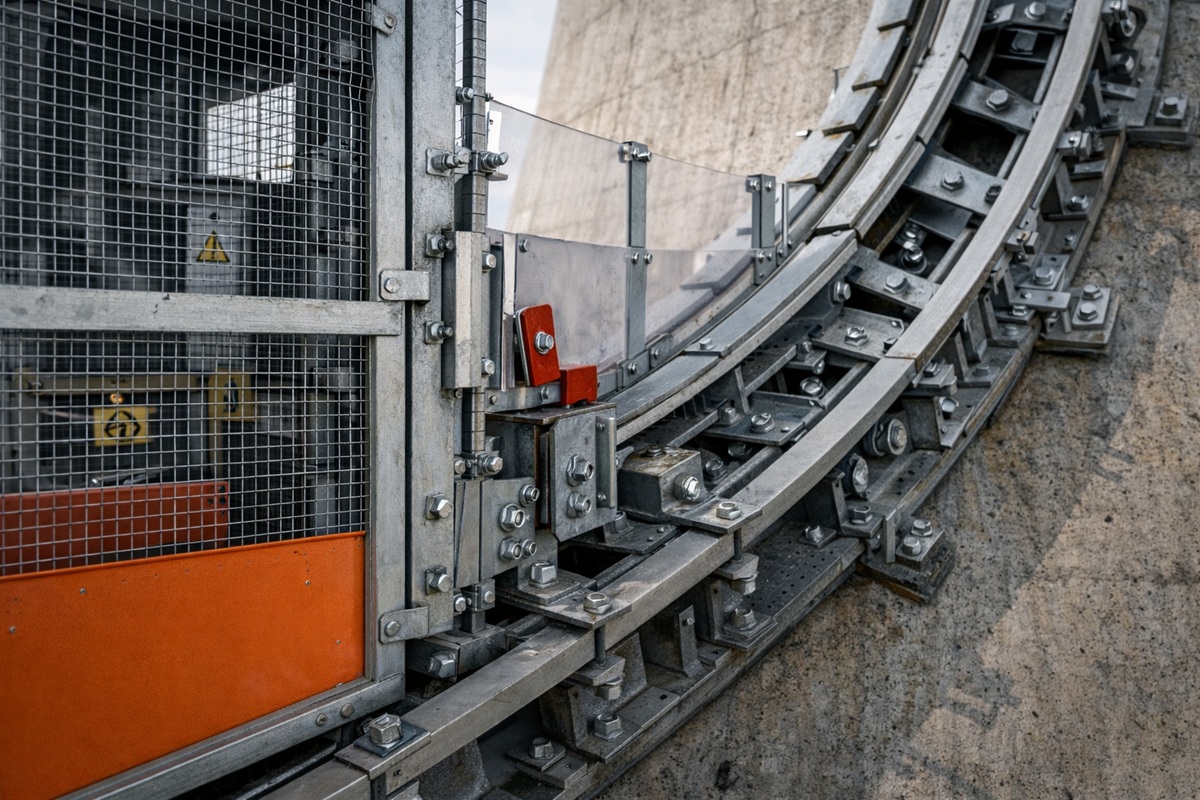

- Multiple integrated safety protection devices
- Rigid rail fixing ensures minimal lateral movement
- Designed for continuous operation in harsh industrial conditions
- Suitable for long-term use in power plant and industrial projects
Custom Engineering Support
Every Curve Guide Rail Construction Hoist is individually engineered based on your project conditions.
To provide an accurate solution, our engineers evaluate:
- Structure diameter and curvature
- Installation height
- Rated load requirement
- Site conditions and working environment.
Project Application
Curve Guide Rail Construction Hoists have been successfully applied in multiple industrial projects, providing safe, efficient, and reliable vertical transportation for complex structures worldwide.
Looking for a Hoist Solution for Curved Structures?
Send us your project information or drawings.
Our engineering team will provide a custom curve guide rail hoist solution tailored to your construction site.
